INDUSTRIAL ENGINES - GM 1.6L
GM 1.6L Industrial Engine
These are brand new General Motors Vortec 1600, 1.6 liter industrial engines. They are complete as seen in our pictures and are found commonly found in Kohler generators, sweepers made by Tennant, Nilfisk, Power boss, Blue line, and Masco Aerial lifts. Individual engine parts are available for purchase. They include cylinder heads, crankshafts, gaskets and other engine parts. |
|
| Industrial Engine Pictures |
Overview |
|
| Price |
$3595.00 |
| Model |
1.6L GM |
| Description |
Designed to work with gasoline, liquid propane gas and natural gas. Pistons have high silicon content for improved durability and noise reduction. Sintered powdered-metal exhaust valve seat inserts for enhanced durability. World-class engine sealing system for superior leak protection. DIS ignition system. Poly-V belt harmonic balancer standard. |
| |
|
|
| General Data |
| Type |
1.6L L4 |
| Displacement |
97.5 cid (1598 cc) |
| Compression Ratio |
9.4:1 |
| Valve Config |
Single Overhead Cam |
| Manufactured |
Sao Jose, Brazil |
| Valve Lifters |
Hydraulic Tappet |
| Bore x Stroke |
3.11 in x 3.21 in (79.0 mm
x
81.5 mm) |
| Balance Method |
External |
| Intake Manifold |
PFI or LPG/NG |
| Oil Pan Capacity |
3.5 liters with filter |
| Fuel Types |
Gasoline PFI, LPG, NG |
| Engine Rotation |
Clockwise |
| Paint Protection |
Painted |
| Horsepower |
29 hp @ 1800 rpm (Gasoline).
55 hp @ 3000 rpm (Gasoline).
26 hp @ 1800 rpm (LPG).
23 hp @ 1800 rpm (Natural Gas). |
| Torque |
94 lb-ft @ 1800 rpm (Gasoline).
96 lb-ft @ 3000 rpm (Gasoline).
85 lb-ft @ 1800 rpm (LPG).
76.5 lb-ft @ 1800 rpm (Natural Gas). |
| Shipping Weight |
224.4 lb (102 kg) |
|
| Materials |
| Block |
Cast Iron |
| Cylinder Head |
Aluminum |
| Intake Manifold |
Aluminum |
| Crankshaft |
Cast Iron |
| Pistons |
High Silicon Content Aluminum |
| Exhaust Seat |
Sintered Powdered Metal Insert |
| Gaskets |
Non-Asbestos |
|
GM 1.6L Industrial Engine Parts
New Price: $620.00
Comes w/Lifters
Remanufactured Price: $395.00
With Rebuildable Core Exchange

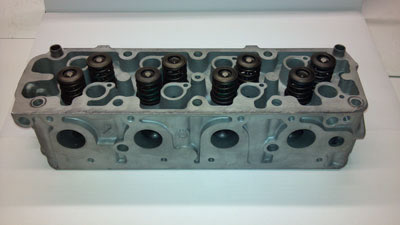

These 1.6 GM Cylinder Heads Fit Tennant Sweepers, NilFisk, Power/boss, Blue Line and Masco Aerial Lifts
| Description |
Our Part # |
Notes |
Price |
| Pistons |
P1.6V |
Set of 4 |
275.00 |
| Rings |
P1.6VR |
Set of 4 |
65.00 |
| Intake Gasket |
IG1.6V |
|
37.00 |
| Camshaft |
CS1.6V |
|
306.00 |
| Lifters |
L1.6V |
8 Pack |
170.00 |
| Followers |
F1.6V |
8 Pack |
152.00 |
| Rod Bearings |
RB1.6V |
4 Pack |
200.00 |
| Main Bearings |
MB1.6V |
Set |
75.00 |
| Timing Belt |
TB1.6V |
|
83.00 |
| Freeze Plugs |
FB1.6V |
Compete Set |
9.00 |
| Gaskets |
1.6VGAS |
Complete Set |
375.00 |
| Head Gasket |
HG1.6V |
|
50.00 |
| Oil Pump |
OP1.6V |
|
170.00 |
| Rear Seal |
RS1.6V |
|
21.00 |
| Crankshaft |
CSH1.6V |
|
520.00 |
| Camshaft Seal |
CSeal1.6V |
|
20.00 |
| Front Crank Seal |
FOS1.6V |
|
29.00 |
| Exhaust Gasket |
EG1.6V |
|
11.00 |
| Valve Stem Seals |
VS1.6V |
8 Pack |
72.00 |
| Intake Valves |
IV1.6V |
4 Pack |
150.00 |
| Exhaust Valves |
EV1.6V |
4 Pack |
175.00 |
| Oil Filter |
OF1.6V |
|
9.00 |
| Water Pump |
WP1.6V |
|
175.00 |
| Water Pump Seal |
WPO1.6V |
O Ring |
6.00 |
| Oil Pan Gasket |
OPG1.6V |
RTV |
26.00 |
| Wire Set |
WS1.6V |
|
85.00 |
| Tensioner |
TN1.6V |
|
240.00 |
| Head Bolts |
HB1.6V |
Set of 10 |
49.00 |
| Timing Cover |
TCBP1.6V |
Back Part |
65.00 |
| |
TCBUL1.6V |
Upper Half |
135.00 |
| |
TCBL16.V |
Lower Half |
52.00 |
| Oil Pressure Switch |
OPS1.6V |
Check Application |
15.00 |
| Head Set |
HS1.6V |
(No Valve Stem Seals) |
200.00 |
| Dipstick Tube |
D1.6VT |
Tube ONLY |
16.00 |
| Dipstick |
D1.6V |
|
18.00 |
| Thermostat Housing |
TH1.6V |
|
72.00 |
| Valve Cover Gasket |
VGC1.6V |
|
72.00 |
| Coil Pack |
CP1.6V |
|
440.00 |
| Starter |
ST1.6V |
|
410.00 |
| Cylinder Head |
CH1.6V |
New w/Lifters |
620.00 |
